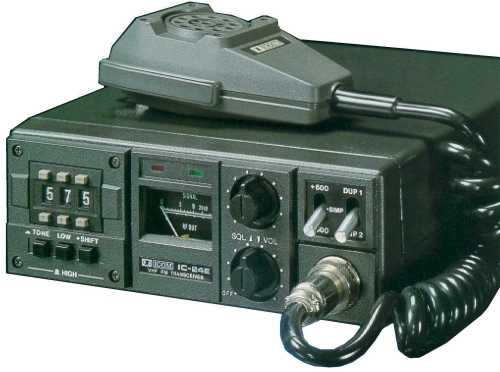

Icom IC-24E
| Type:
|
Amateur VHF Transceiver |
| Frequency Range: |
144-146 MHz (5 KHz steps) |
| Modes: |
FM |
| RF Power output: |
Hi: 10 W
Lo: 1 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 500 mA
TX: Max 2.3 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
156*58*218 mm |
| Weight: |
1.7 Kg |
| Manufactured: |
1981-19xx |
| Other: |
|
| Related Documents: |
|
|
