| Type:
|

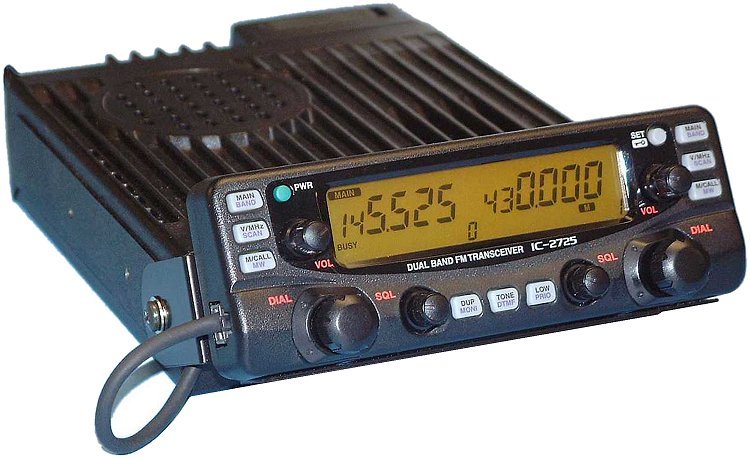

Amateur VHF/UHF Transceiver |
| Frequency Range: |
TX: 144-146 / 430-440 MHz
RX: 118-899.9875 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 50/35 W
Mid: ?/? W
Lo: 5/5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image response: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 1.8 A
TX: Max 12 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
140*50*270 mm |
| Weight: |
1.4 Kg |
| Manufactured: |
2002-200x |
| Other: |
212 memories. CTCSS & DTCS. 9k6 packet ready. Twin RX |
| Related Documents: |
User Manual (2.51 MB) |
