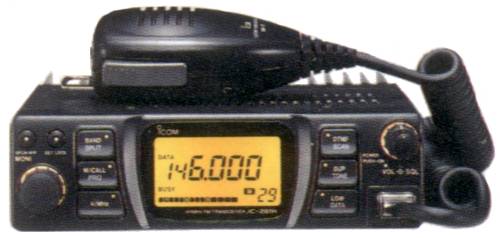

Icom IC-281H
| Type:
|
Amateur VHF Transceiver |
| Frequency Range: |
TX: 144-146 MHz (Europe)
TX: 144-148 MHz (USA)
RX: 136-174 / 400-479 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 50 W
Mid: 10 W
Lo: 5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 1 A
TX: Max 10.5 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
140*40*171 mm |
| Weight: |
930 gr |
| Manufactured: |
1994-19xx |
| Other: |
9K6 packet ready |
