| Type: |
Amateur HF/VHF/UHF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC / 6 m / 2 m / 70 cm
RX: 0.03-200 / 400-470 MHz |
| Modes: |
AM/FM/SSB/CW/RTTY/PSK31 |
| RF Power output: |
FM/SSB/CW/RTTY: 2-100 / 2-100 / 2-50 / 2-35 W
AM: 1-40 / 1-40 / 2-20 / 2-14 W |
| Sensitivity: |
AM (10 dB S/N)
0.5-1.8 MHz: 4 uV
1.8-29.9 MHz: 2 uV
50-54 MHz: 1 uV
144/440 MHz: 1 uV
FM (12 dB SINAD)
1.8-29.9 MHz: 0.5 uV
50-54 MHz: 0.25 uV
144/440 MHz: 0.18 uV
SSB/CW (10 dB S/N)
1.8-29.9 MHz: 0.15 uV
50-54 MHz: 0.12 uV
144/440 MHz: 0.11 uV
|
| Selectivity: |
AM (BW=6 KHz)
>6 KHz (-6 dB), <15 KHz (-60 dB)
FM (BW=15 KHz)
>12 KHz (-6 dB), <20 KHz (-60 dB)
SSB (BW=2.4 KHz)
>2.4 KHz (-6 dB), <3.9 KHz (-60 dB)
CW (BW=500 Hz)
>500 Hz (-6 dB), <900 Hz (-60 dB)
RTTY (BW=350 Hz)
>360 Hz (-6 dB), <650 Hz (-60 dB) |
| Image rejection: |
HF: >70 dB
50/144/440 MHz: >65 dB |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 1.3-1.6 A
TX: Max 22 A |

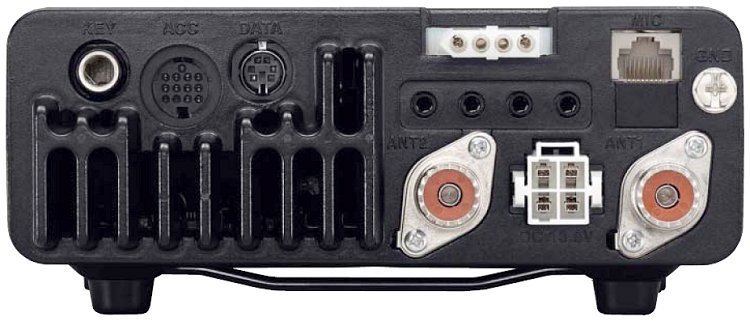

| Aerial Input: |
50 ohms, 2*SO-239 |
| Dimensions (W*H*D): |
167*58*180 mm |
| Weight: |
2.3 Kg |
| Manufactured: |
2005-200x |
| Other: |

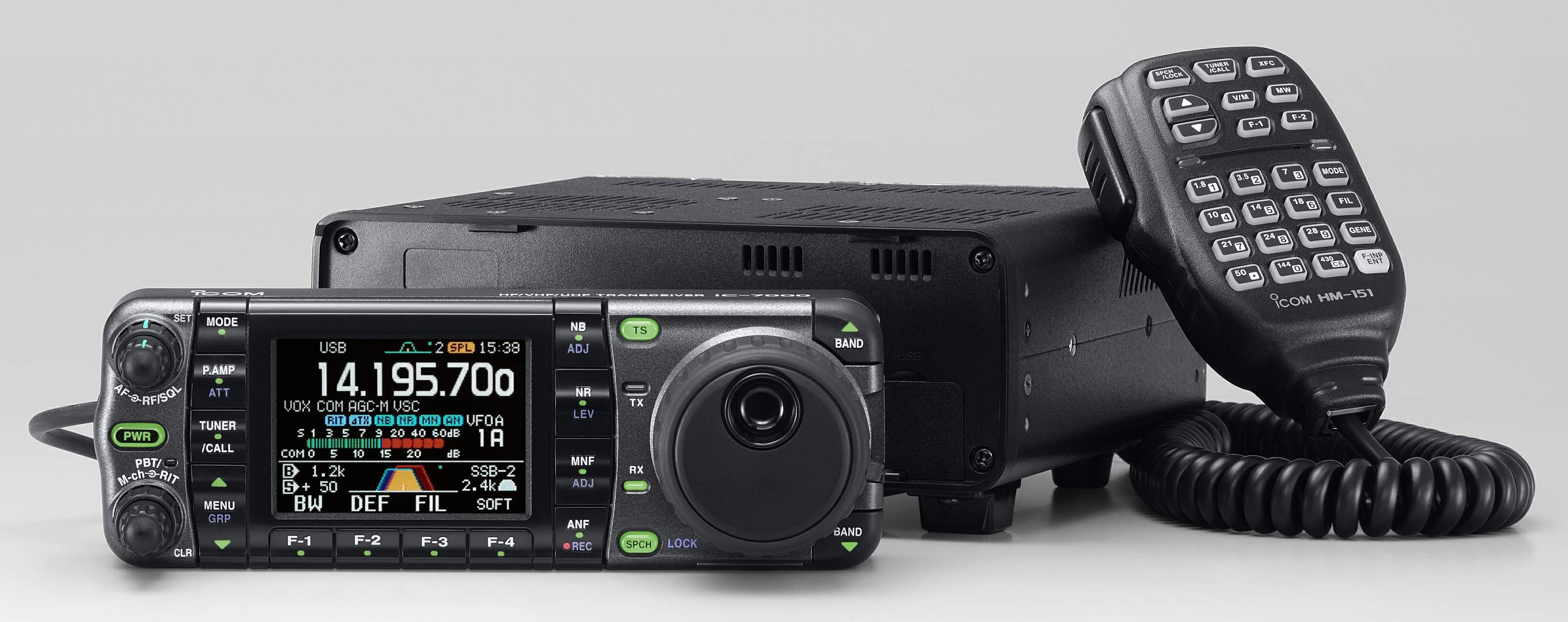

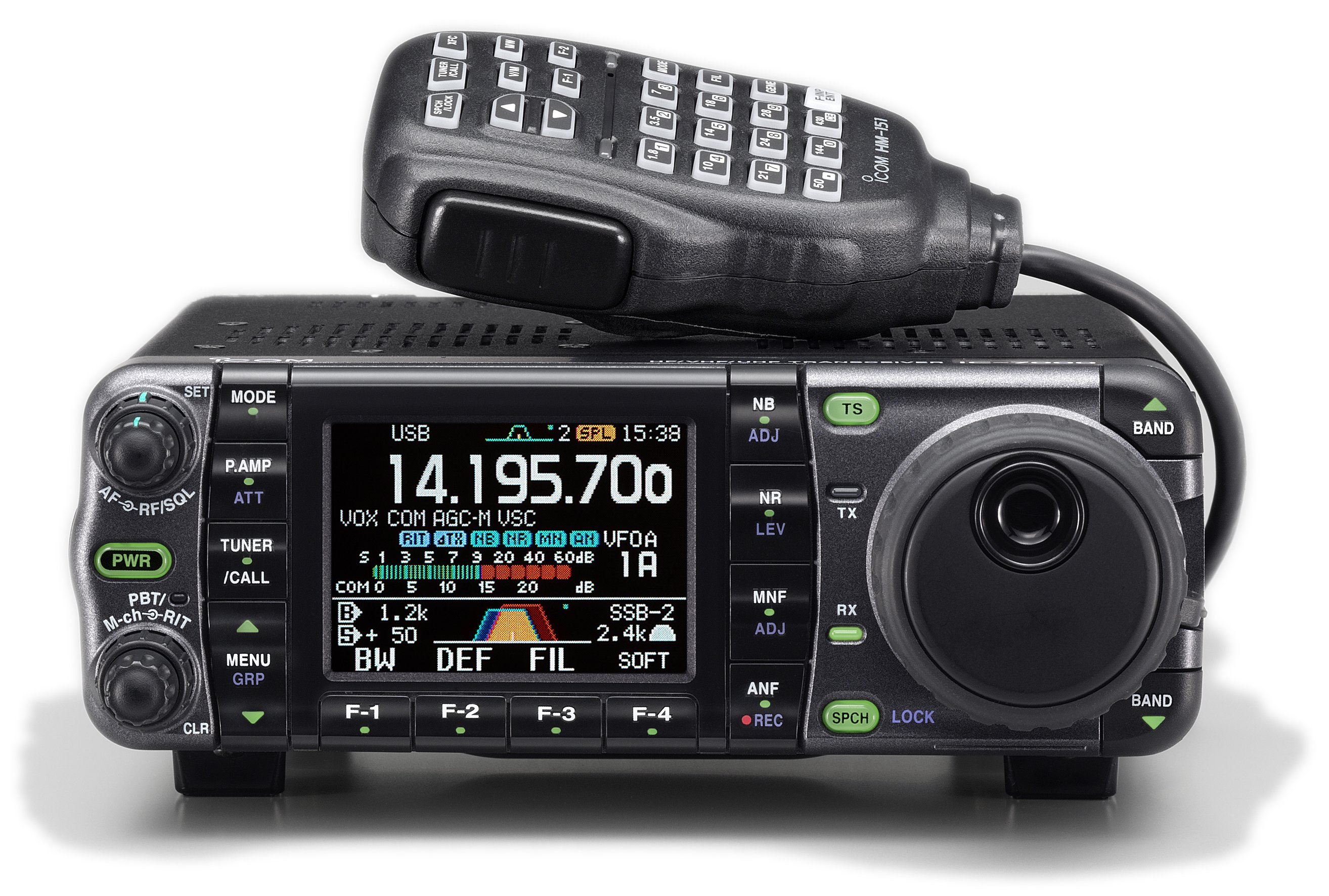

2" (5 cm) TFT display. IF-DSP. 508 memories. Voice recorder. Detachable control head.
CTCSS/DTCS. Audio equalizer. Built-in voice synthesizer. CI-V. VHF channels NTSC-M
and PAL-B TV Receiver on some versions. |
| Related Documents: |
Instruction Manual (4.7 MB)
Brochure (1.62 MB) |
