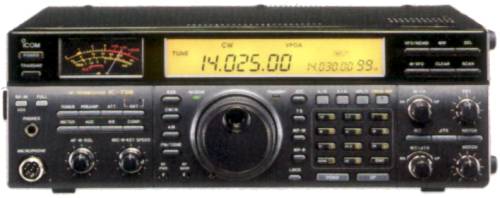

Icom IC-738
| Type:
|
Amateur HF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC
RX: 0.3-30 MHz |
| Modes: |
AM/FM/SSB/CW |
| RF Power output: |
10-100 W (AM 4-40 W) |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 1.6-2.1 A
TX: Max 20 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
333*110*285 mm |
| Weight: |
8.6 Kg |
| Manufactured: |
1994-19xx |
| Other: |
Built-in auto-AT. Twin RX |
| Related Documents: |
User Manual (7.4 MB) |
 |
