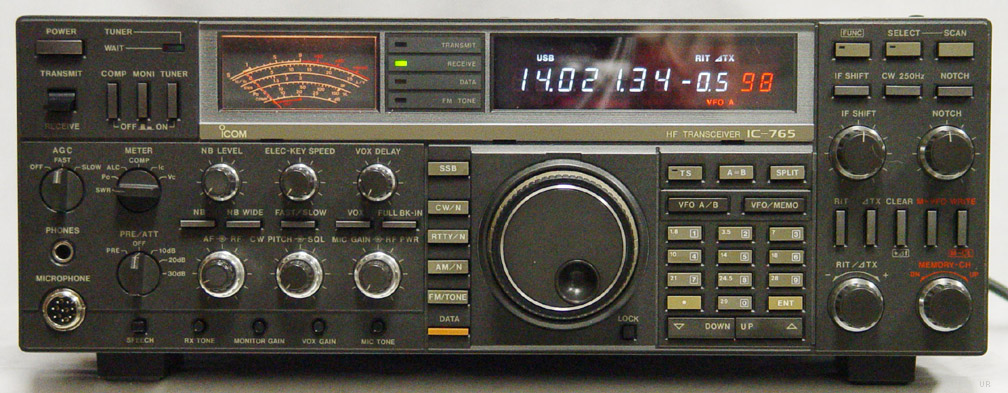

Icom IC-765
| Type:
|
Amateur HF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC
RX: 0.1-30 MHz |
| Modes: |
AM/FM/SSB/CW |
| RF Power output: |
100 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
Mains |
| Current Drain: |
RX: ? mA
TX: Max ? A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
424*150*390 mm |
| Weight: |
17.5 Kg |
| Manufactured: |
19xx-19xx |
| Other: |
Built-in auto-AT |
| Related Documents: |
User Manual (5.1 MB)
Brochure (7.0 MB) |
 |
