| Type:
|
Amateur HF/VHF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC / 6 m
RX: 0.03-60 MHz |
| Modes: |
AM/FM/SSB/CW/RTTY/PSK31 |
| RF Power output: |
5-200 W (AM: 5-50 W) 100% duty cycle! |
| Sensitivity: |
SSB/CW/RTTY (2.4 KHz BW, 10 dB S/N)
0.1-1.79 MHz: 0.5 uV
1.6-30 MHz: 0.16 uV
50-54 MHz: 0.13 uV
AM (6 KHz BW, 10 dB S/N)
0.1-30 MHz: 2 uV
50-54 MHz: 1 uV
FM (15 KHz BW, 12 dB SINAD)
28-30 MHz: 0.5 uV
50-54 MHz: 0.32 uV |
| Selectivity: |
SSB/RTTY (2.4 KHz BW)
2.4 KHz (-3 dB), 3.6 KHz (-60 dB)
CW (500 Hz BW)
500 Hz (-3 dB), 700 Hz (-60 dB)
AM (6 KHz BW)
6 KHz (-3 dB), 15 KHz (-60 dB)
FM (15 KHz BW)
12 KHz (-3 dB), 20 KHz (-60 dB) |
| Image rejection: |
Better than 70 dB |
| Voltage: |
Mains 85-265 VAC |
| Current Drain: |
RX: Max 210 VA
TX: Max 800 VA |

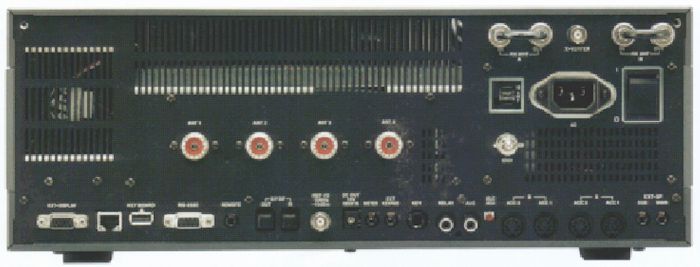

| Aerial Input: |
50 ohms, 4*SO-239 |
| Dimensions (W*H*D): |
424*150*420 mm |
| Weight: |
25 Kg |
| Manufactured: |
2003-200x |
| Other: |
4*32 bit DSP's. Built-in RTTY/PSK31 encoder/decoder.
Built-in auto-AT. 7" color TFT with VGA output. Twin RX
Spectrum scope. Digital voice recorder
RS-232C. Built-in voice synthesizer
Compact Flash card for storing personal settings
+40 dBm ultra high intercept point. |
| Related Documents: |
User Manual (25.7 MB)
Pre-Release Brochure (814 Kb)
Brochure (1.21 MB) |
