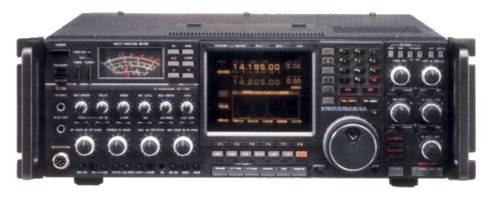

Icom IC-781
| Type:
|
Amateur HF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC
RX: 0.1-30 MHz |
| Modes: |
AM/FM/SSB/CW |
| RF Power output: |
15-150 W (AM 8-75 W) |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
Mains |
| Current Drain: |
RX: ? A
TX: Max ? A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
429*168*439 mm |
| Weight: |
23 Kg |
| Manufactured: |
1987-199x |
| Other: |
Spectrum scope
Built-in keyer and AT. Twin RX |
| Related Documents: |
User Manual (6.7 MB) |
|
