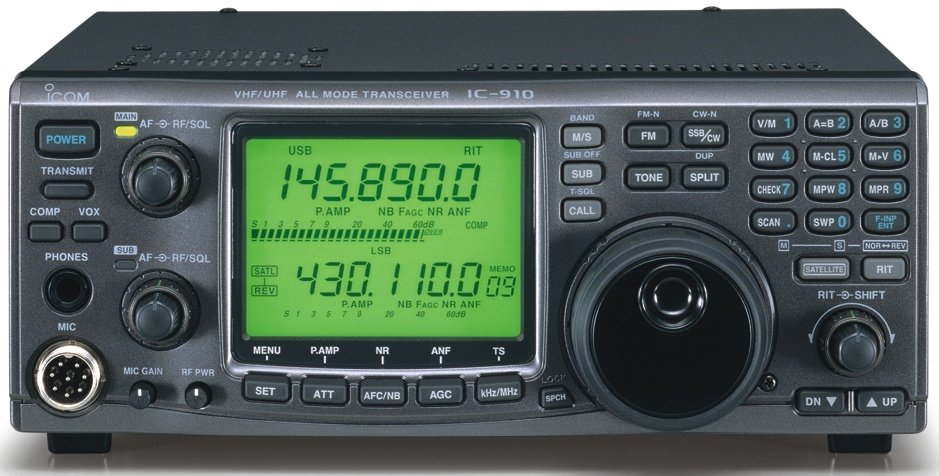

Icom IC-910D
| Type:
|
Amateur VHF/UHF Transceiver |
| Frequency Range: |
144-146 / 430-440 MHz (Asia) |
| Modes: |
FM/FM-N/SSB/CW |
| RF Power output: |
5-50 / 5-50 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 2.5 A
TX: Max 18 A |
| Aerial Input: |
50 ohms, SO-239 / N |
| Dimensions (W*H*D): |
241*94*239 mm |
| Weight: |
4.5 Kg (without UX-910) |
| Manufactured: |
Japan, 2000-200x |
| Other: |
1260-1300 MHz/10 W (UX-910) and DSP (UT-106) option
Dual 9K6 packet ports and built-in keyer. Twin RX |
| Related Documents: |
|
|
