| Type:
|

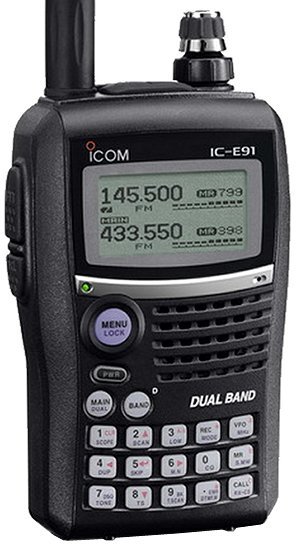

Amateur VHF/UHF Transceiver |
| Frequency Range: |
TX: 144-146 / 430-440 MHz
RX: 0.495-999.990 MHz
5/6.25/8.33/9/10/12.5/15/20/25/30/50/100/200 KHz steps |
| Modes: |
TX: FM (DV option (Digital voice) UT-121)
RX: AM/FM/WFM (DV option (Digital voice) UT-121) |
| RF Power output: |
Hi: 5/5
Lo: 0.5/0.5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
? VDC battery or 10-16 VDC external |
| Current Drain: |
RX: 17-370 mA
TX: Max 2.2 A |
| Aerial Input: |
50 ohms, SMA |
| Dimensions (W*H*D): |
58*103*34 mm |
| Weight: |
300 gr (with battery and antenna) |
| Manufactured: |
Japan, 2006-200x |
| Other: |
1304 memories. DTMF and CTCSS. Spectrum scope
PC-programmable. Alpha tags. Twin RX. D-Star option |
| Related Documents: |
User Manual (1.7 MB) |
