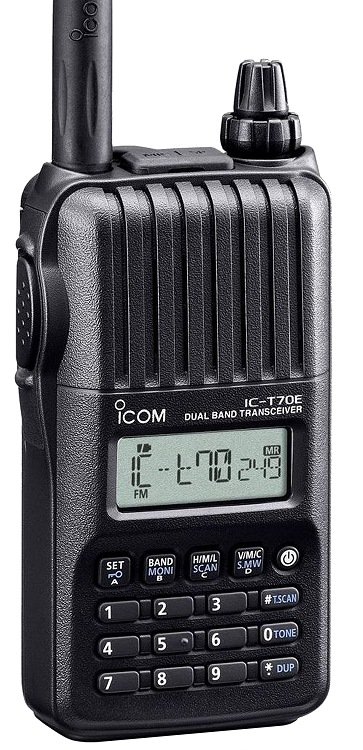

Icom IC-T70E
| Type: |
Amateur VHF/UHF Transceiver |
| Frequency Range: |
TX: 144-146, 430-440 MHz
RX: 136-174, 400-479 MHz |
| Memories: |
302 alpha memories |
| Modes: |
FM/NFM (15/7 KHz BW) |
| Frequency Steps: |
5, 10, 12.5, 15, 20, 25, 30, 50, 100, 125, 200 KHz |
| RF Power Output: |
Hi: 5 W
Mid: 2.5 W
Lo: 0.5 W |
| Voltage: |
7.2 VDC (NiMh battery pack) or 10-16 VDC External |
| Current Drain: |
RX: 40-450 mA
TX: 0.6-2.1 A |
| Aerial Input: |
50 ohms, SMA |
| Dimensions: |
58(W) x 111(H) x 30(D) mm |
| Weight: |
380 gr(With antenna and BP-264) |
| Manufactured: |
Japan, 200x-201x |
| Other: |
VOX, CTCSS/PL, DTCS, DTMF.
Four different mic gain levels. |
| Related Documents: |
Instruction Manual (9.3 MB)
Brochure (521 kb) |
|
