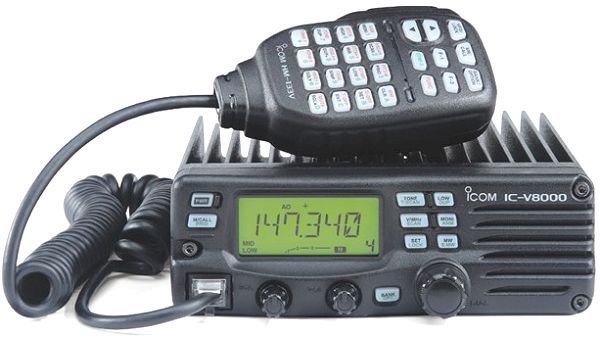

Icom IC-V8000
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
TX: 144-146 MHz (Asia)
TX: 144-148 MHz (USA)
RX: 136-174 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 75 W
Mid-Hi: 25 W
Mid-Lo: 10 W
Lo: 5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 0.3-1 A
TX: Max 15 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
150*50*150 mm |
| Weight: |
1.1 Kg |
| Manufactured: |
2002-200x |
| Other: |
207 memories. Selectable green or amber display.
CTCSS and DCS. Standard DTMF encoder and optional decoder.
Weather alert scan (US version only). |
| Related Documents: |
Brochure (291 Kb) |
|
