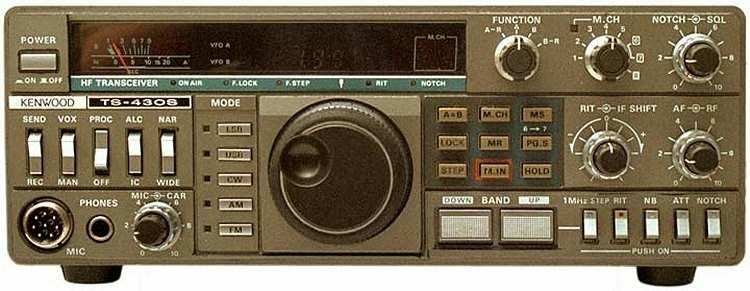

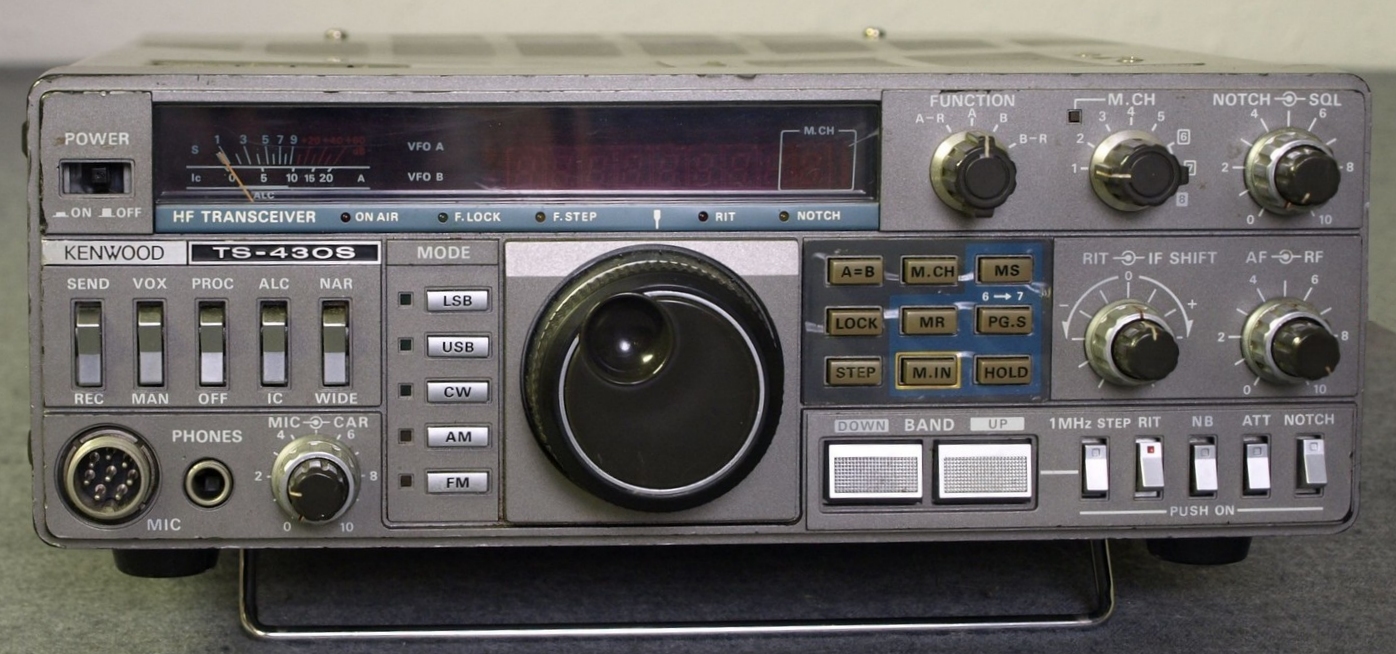

Kenwood TS-430S
| Type: |
Amateur HF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC
RX: 0.150-30 MHz |
| Modes: |
AM/FM/SSB/CW |
| RF Power output: |
100 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 1.2 A
TX: Max 20 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
270*96*275 mm |
| Weight: |
6.5 Kg |
| Manufactured: |
1983-19xx |
| Other: |
|
| Related Documents: |
User Manual (2.23 MB) |

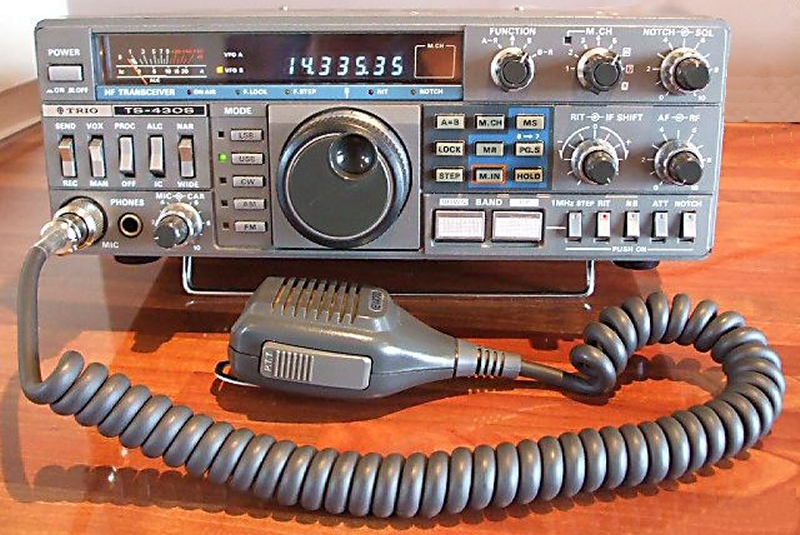

Trio Version:
 |
