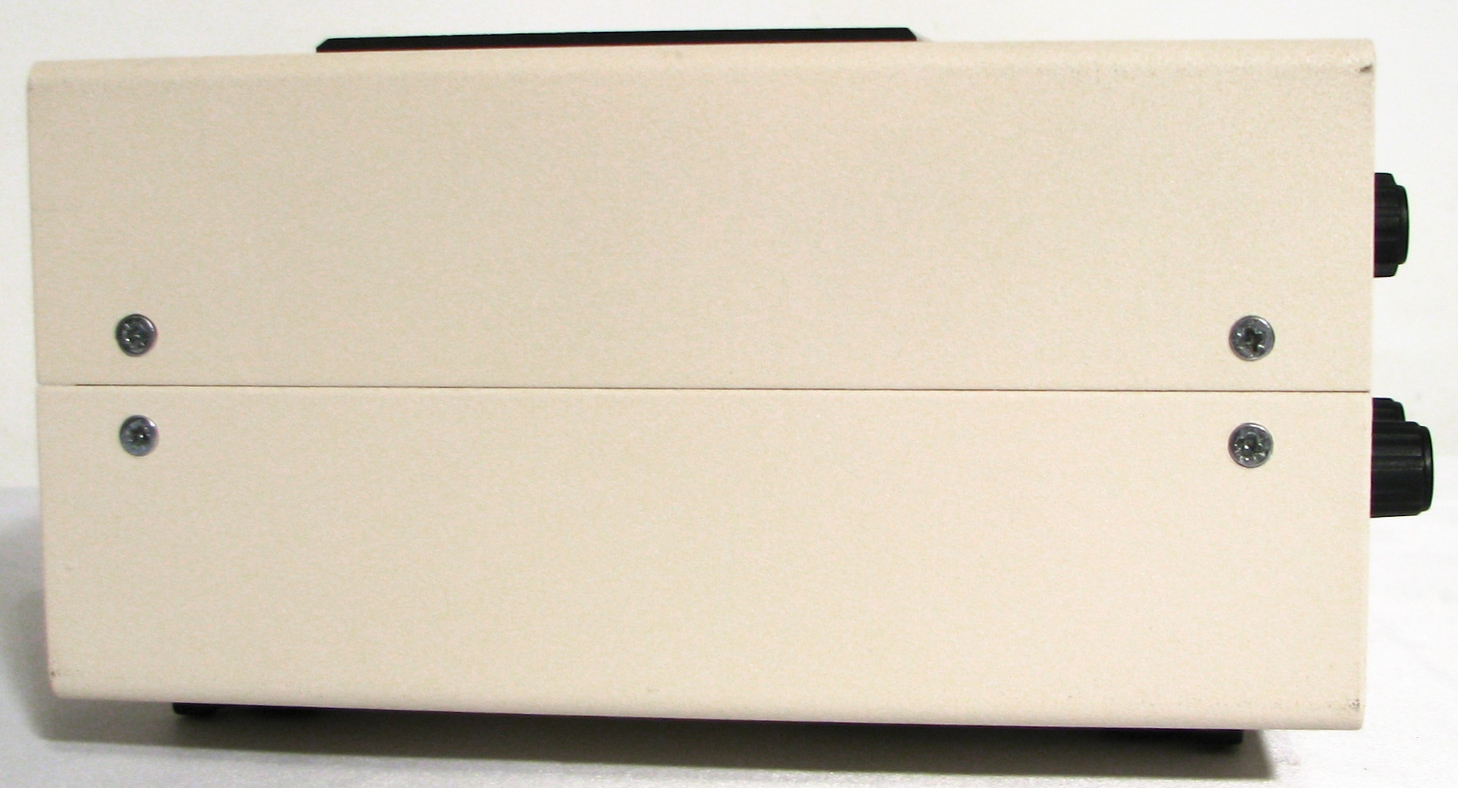

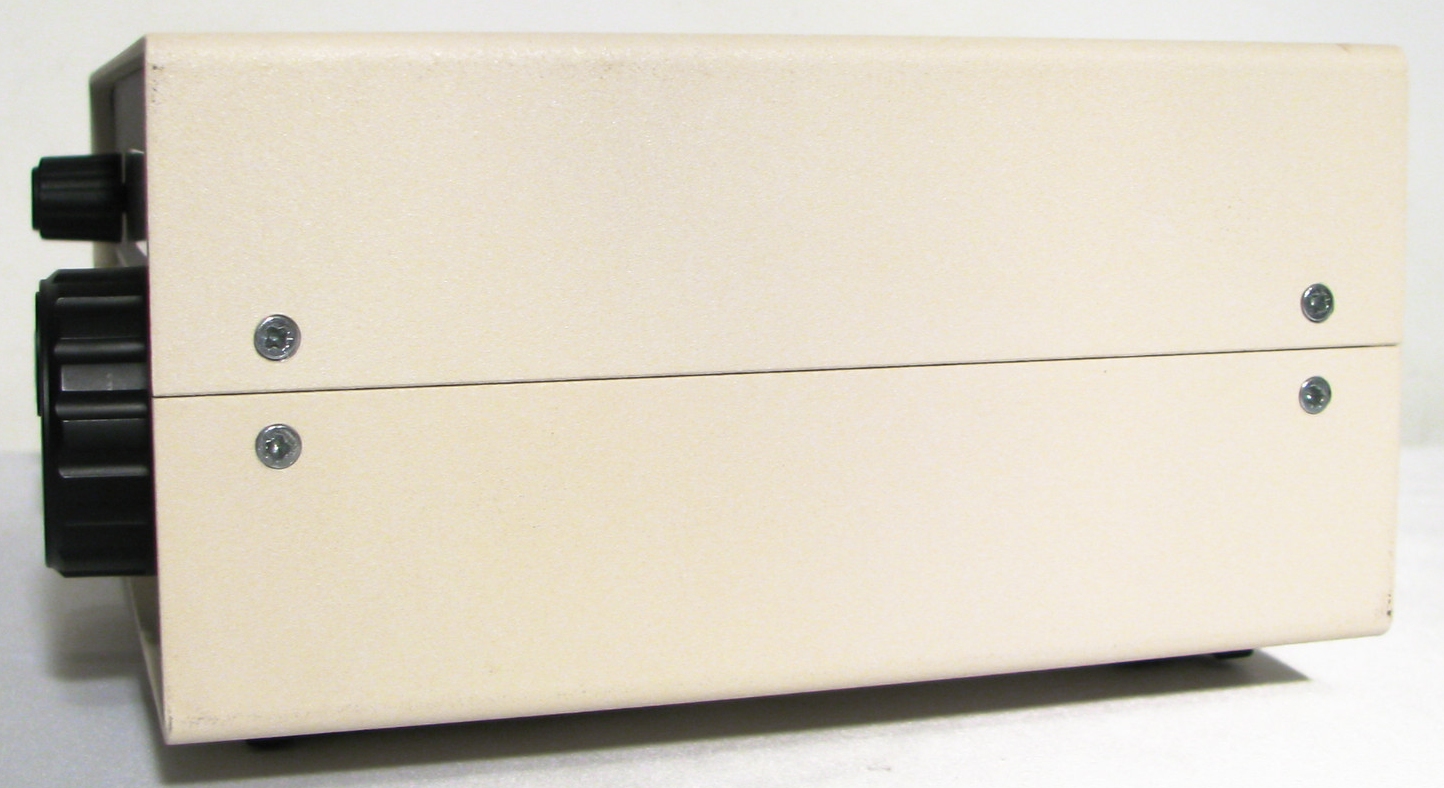

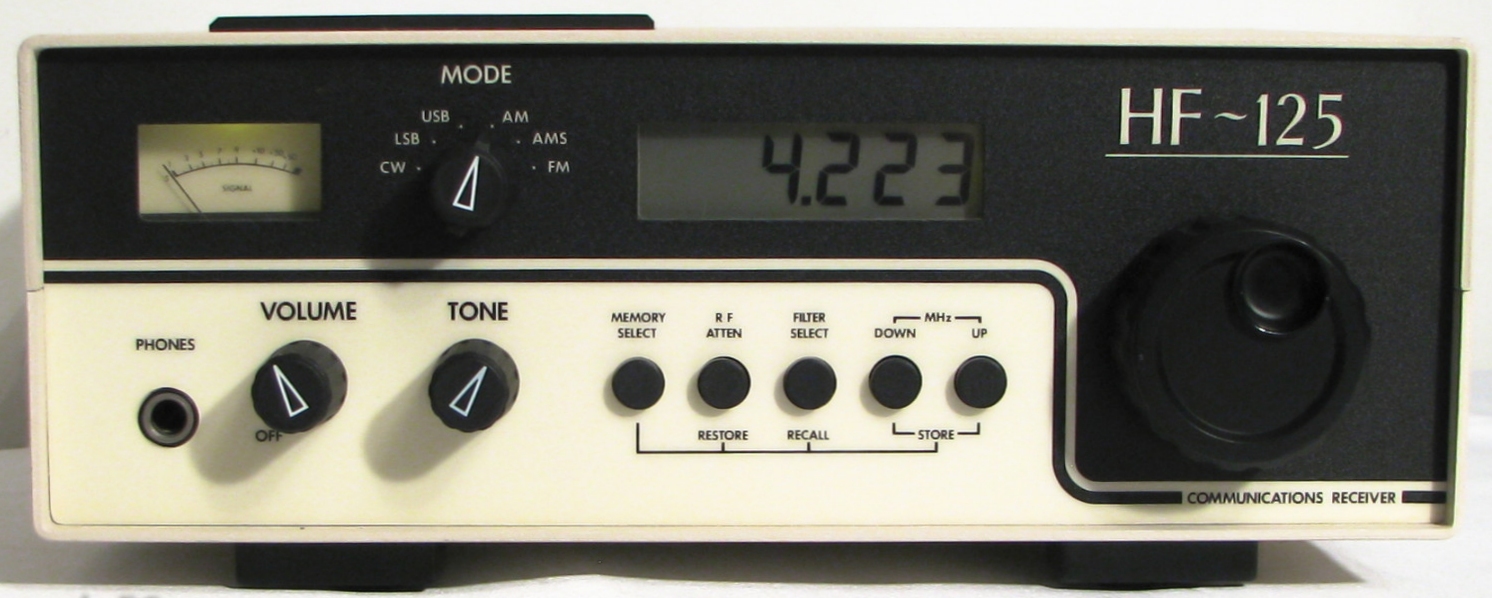

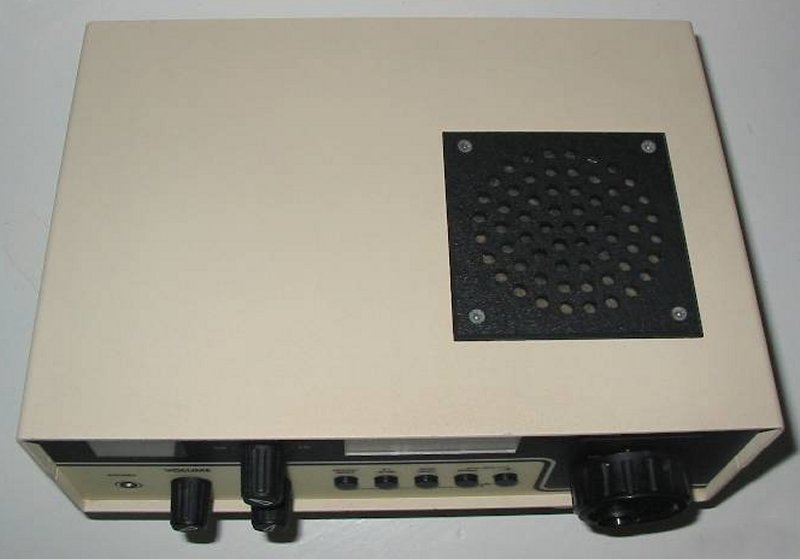

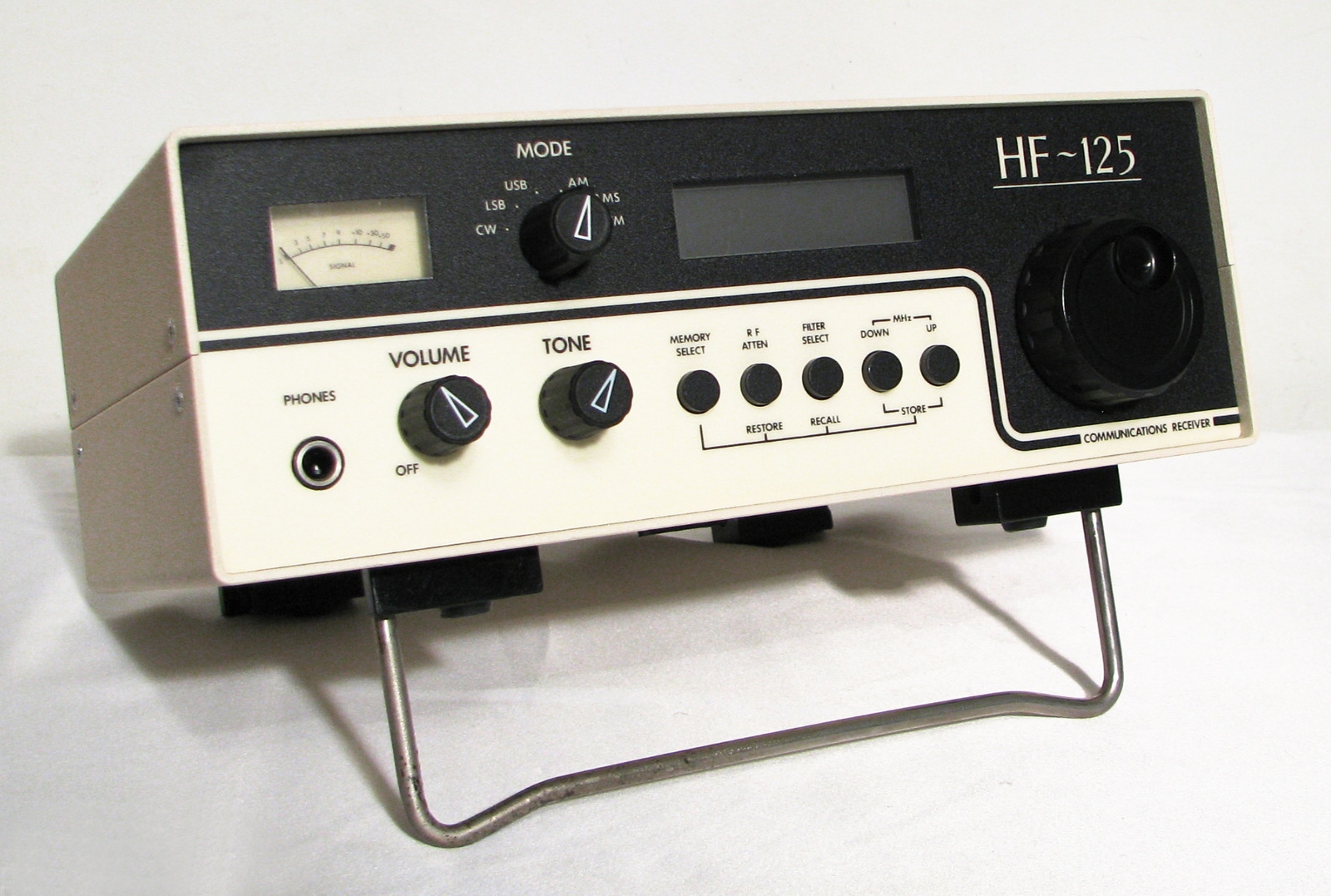

Lowe HF-125

Type: HF Receiver
Frequency Range: 30 KHz-30 MHz
Modes: SSB/CW/AM
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 13.8 VDC
Current Drain: Max 250 mA
Aerial Input: 50 ohms
Dimensions (W*H*D): 255*100*200 mm
Weight: 1.8 Kg
Manufactured: UK, 1987-1988
Other: Synchro-AM and FM option
Related Documents: User manual (21.2 MB)
Schematics (1.9 MB)

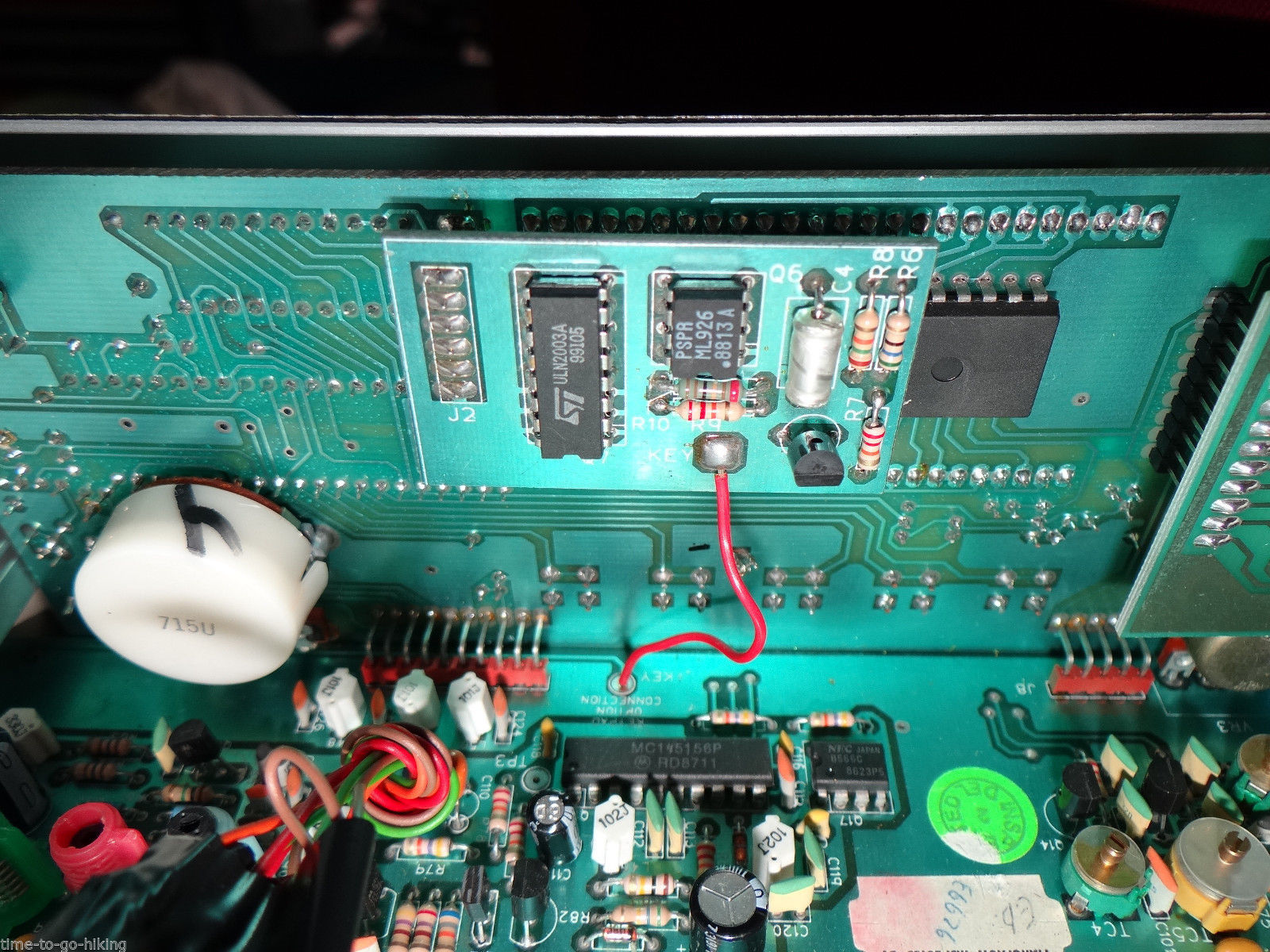

Keypad Option:

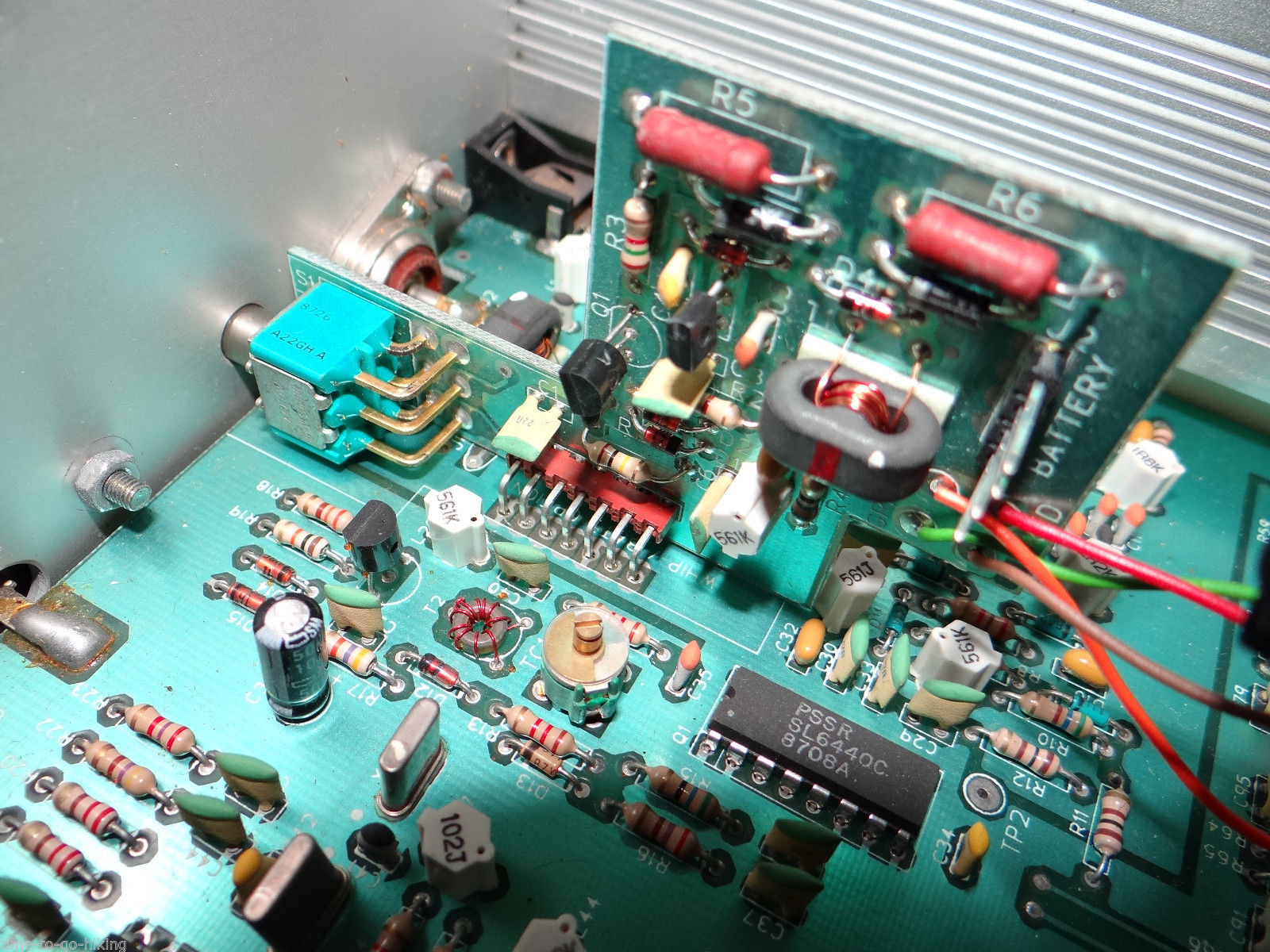

Whip Antenna Option:
