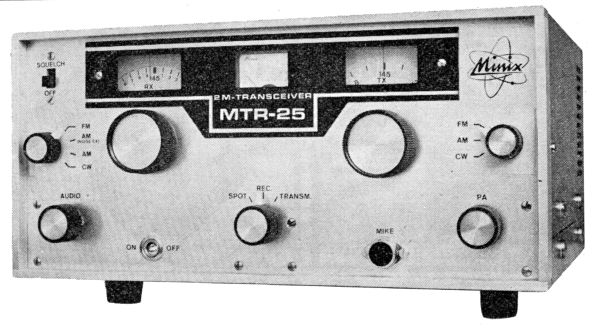

Minix MTR-25S
| Type: |
VHF Transceiver |
| Frequency Range: |
144-146 MHz |
| Mode: |
TX: AM/FM
RX: AM/FM/CW |
| RF Power output: |
Max 8 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
12 VDC or Mains |
| Current Drain: |
RX: ? mA
TX: Max ? A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
300*160*340 mm |
| Weight: |
6 Kg |
| Manufactured: |
Japan, 1970-197x |
| Other: |
IF-mechanical filter, squelch, noise limiter.
QQE03/12 final
New price 1970 in West Germany: DM 1148.- |
| Related Documents: |
|
|
