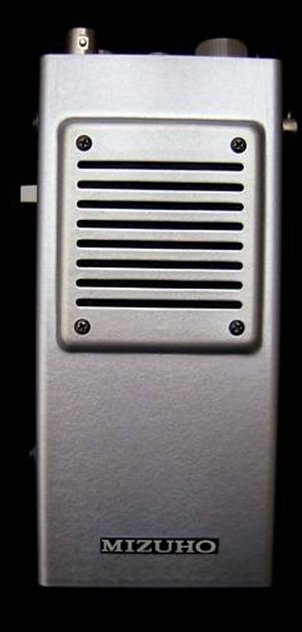

Mizuho MX-14S
| Type: |
Handheld Transceiver |
| Frequency Range: |
20 m (50 KHz per XTAL) |
| Mode: |
SSB/CW |
| RF Power output: |
2 W |
| Memories: |
2/crystals |
| Scan Speed: |
N/A |
| Search Speed: |
N/A |
| Voltage: |
8.4-9.0VDC |
| Current Drain: |
RX: 70 mA, TX: Max 620 mA |
| Aerial Input: |
50 ohms |
| Dimensions: |
66(W) x 142(H) x 39(D) mm |
| Weight: |
590g; 710g with Batteries and Antenna |
| Manufactured: |
Japan, 1987-2002 |
| Other: |
VXO. Max 2 XTALS |
| Related Documents: |
User Manual (746 Kb)
Schematic (721 Kb) |
 |
