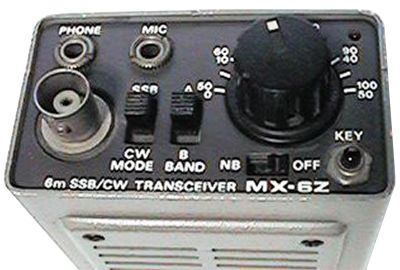

Mizuho MX-6Z
| Type: |
Handheld Transceiver |
| Frequency Range: |
6 m (50 KHz per XTAL) |
| Mode: |
SSB/CW |
| RF Power output: |
250 mW |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
9.5 VDC |
| Current Drain: |
RX: 40 mA, TX: Max 180 mA |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
66*142*39 mm |
| Weight: |
645 gr (batteries included) |
| Manufactured: |
Japan, 1983-19xx |
| Other: |
VXO. Max 2 XTALS |
| Related Documents: |
User Manual (2.09 MB)
Sales Leaflet (149 Kb) |
|
