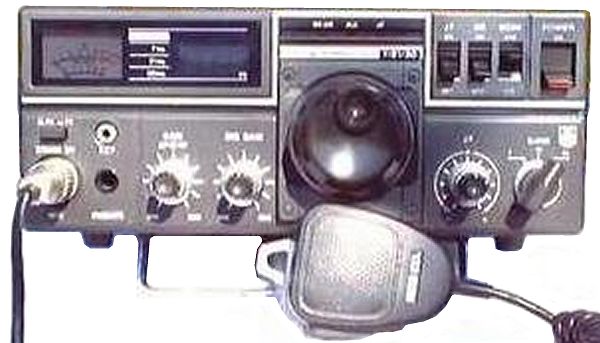

NCG 7/21/50
| Type: |
Amateur Transceiver |
| Frequency Range: |
40/15/6 m |
| Modes: |
SSB/CW |
| RF Power output: |
Max 10 W |
| Sensitivity: |
0.25 uV (10 dB S/N) |
| Selectivity: |
SSB: 2.2 KHz (-6 dB)
CW: 400 Hz (-6 dB) |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC or Mains |
| Current Drain: |
RX: Max 600 mA
TX: Max 4 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
246*99*269 mm |
| Weight: |
5 Kg |
| Manufactured: |
Japan, 19xx-19xx |
| Other: |
|
| Related Documents: |
|
|
