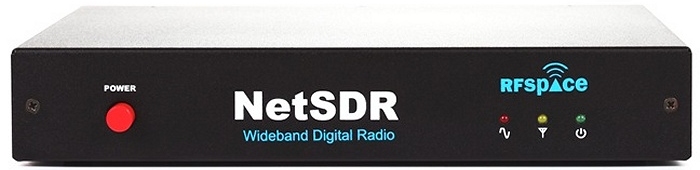

RFSPACE NetSDR
| Type: |
HF/VHF SDR Receiver |
| Frequency Range: |
0.01-34 MHz |
| Modes: |
AM/AM-Sync/FM/WFM/SSB/CW/DRM |
| Receiver System: |
N/A |
| Sensitivity: |
N/A |
| Selectivity: |
Software Defined |
| Image Rejection: |
N/A |
| Output IQ Sample Rate: |
12.5 KHz to 2 MHz |
| Output IQ Bandwidth: |
10 KHz to 1.6 MHz |
| Voltage: |
5 VDC |
| Current Drain: |
Max 1.5 A |
| Impedance: |
50 ohms, BNC |
| Dimensions (W*H*D): |
228*38*180 mm |
| Weight: |
? Kg |
| Manufactured: |
USA, 20xx-201x |
| Other: |

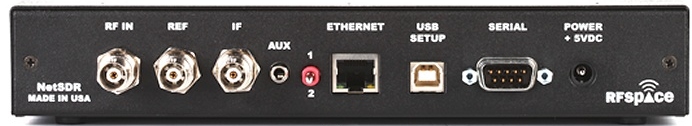

Ethernet I/F to PC. RS-232C for external radio control. USB.
Suitable software: SpectraVue, SDR-Radio and CuteSDR.
New Price: $1449 (USA 2012) |
| Related Documents: |
User Guide (1.79 MB) |
 |
