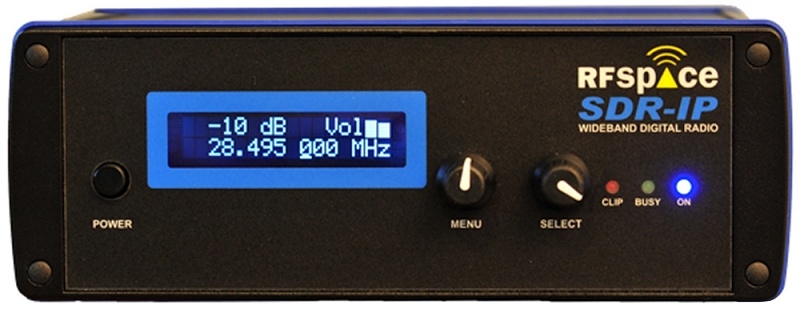

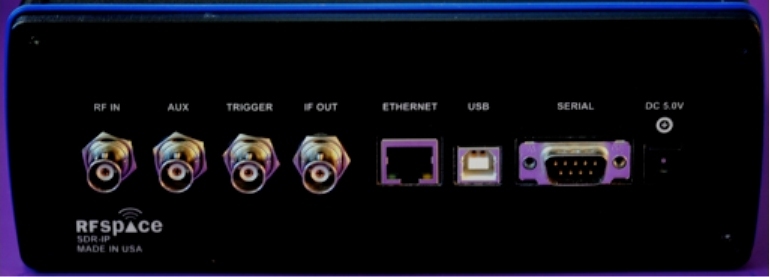

RFSPACE SDR-1P
| Type: |
HF/VHF SDR Receiver |
| Frequency Range: |
0.01-34 MHz |
| Modes: |
AM/AM-Sync/FM/WFM/SSB/CW/DRM |
| Receiver System: |
N/A |
| Sensitivity: |
N/A |
| Selectivity: |
Software Defined |
| Image Rejection: |
N/A |
| Output IQ Sample Rate: |
32 KHz to 2 MHz |
| Output IQ Bandwidth: |
Max: 1.8 MHz |
| Voltage: |
5 VDC |
| Current Drain: |
Max 1.2 A |
| Impedance: |
50 ohms, BNC |
| Dimensions (W*H*D): |
?? x ?? x ?? mm |
| Weight: |
? Kg |
| Manufactured: |
USA, 20xx-201x |
| Other: |
The Analog front end uses a High Dynamic Range Preamp with a Bank of 10 Preselector Filters
and 2 switchable Attenuators. RF switching uses relays for better IMD. Ethernet I/F to PC.
RS-232C external radio control.Suitable software: SpectraVue, SDR-Radio and CuteSDR
New Price: $2999 (USA 2012) |
