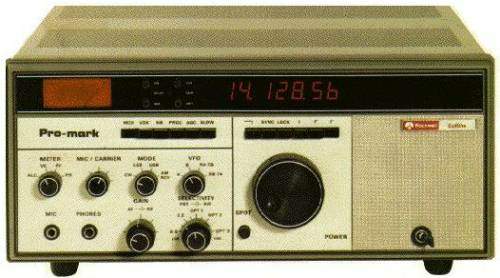

Collins KWM-380

Type: Amateur HF Transceiver
Frequency Range: 10-160 m
Modes: AM/SSB/CW
RF power output: Max 100 W
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 12-15 VDC or Mains
Current Drain: ?
Aerial Input: 50 ohms
Dimensions (W*H*D): 394*190*457 mm
Weight: 27.2 Kg
Manufactured: USA, 198x-198x
Other: RX: 0.5-30 MHz
New price 1981 in the US: $3496.00
