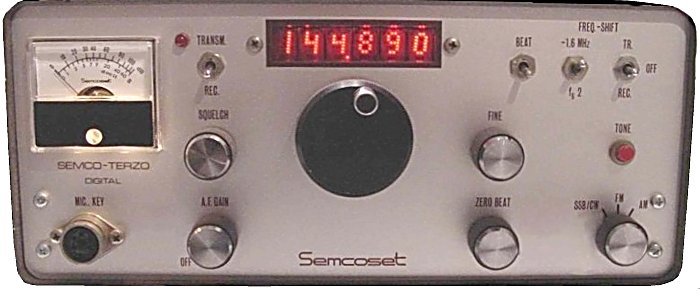

Semcoset Semco-Terzo Digital
| Type: |
Amateur VHF transceiver |
| Frequency Range: |
144-146 MHz |
| Mode: |
SSB/CW/AM/FM |
| RF Power output: |
AM/SSB: 25 W (PEP)
FM: 15 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
12 VDC or Mains |
| Current Drain: |
RX: ? mA
TX: Max 7 A |
| Aerial Input: |
60 ohms, SO-239 |
| Dimensions (W*H*D): |
260*260*120 mm |
| Weight: |
5.7 Kg |
| Manufactured: |
W.Germany, 197x-197x |
| Other: |
Repeater offset |
| Related Documents: |
|
|
