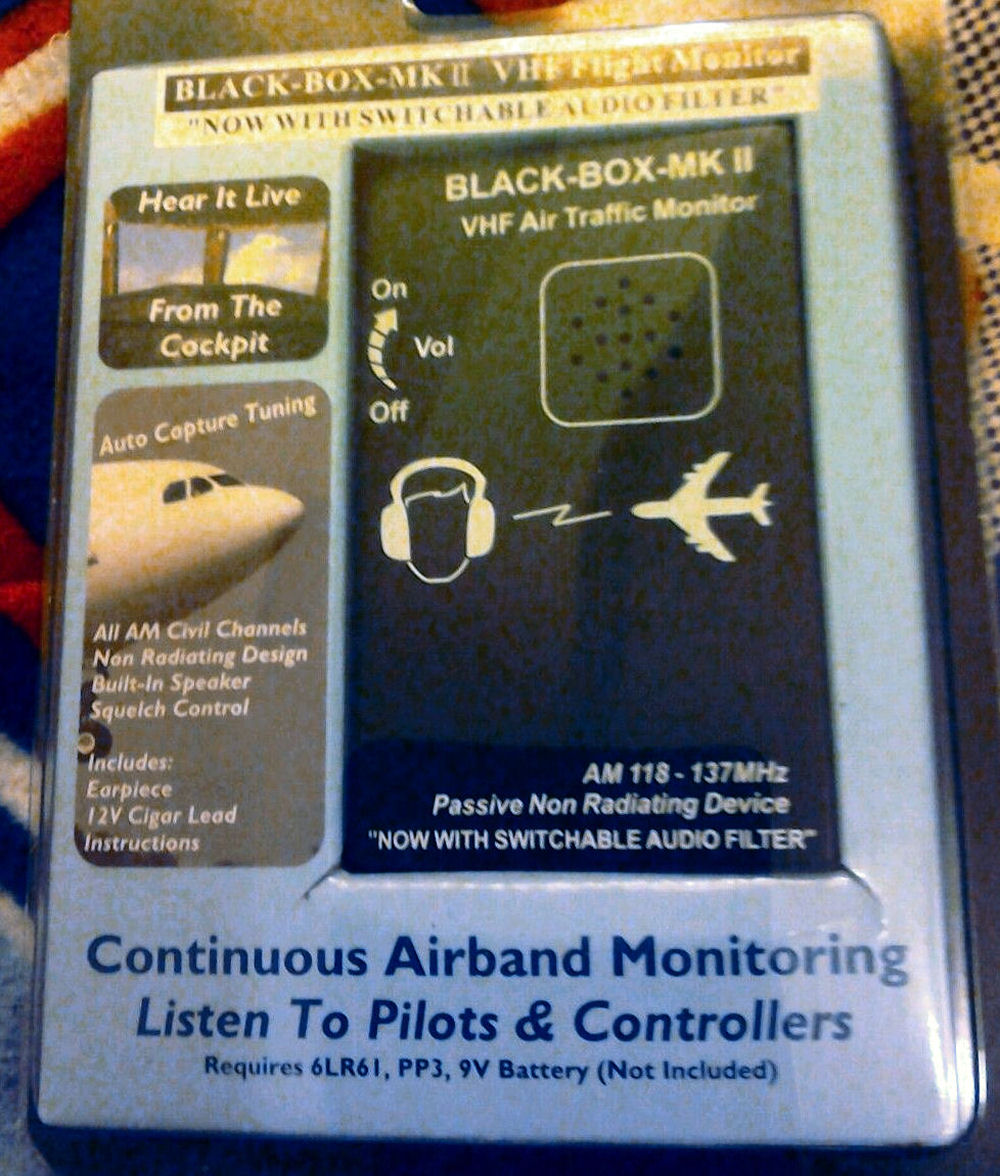

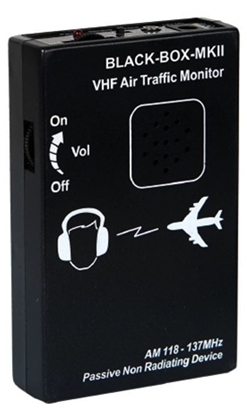

Black-Box-MKII
| Type: |
Passive Air Band Monitor |
| Frequency Range: |
118 to 137 MHz |
| Mode: |
AM |
| IF Frequencies: |
None |
| Receiver Sensitivity: |
Typically 2uV |
| Antenna input: |
Antenna built into earpiece |

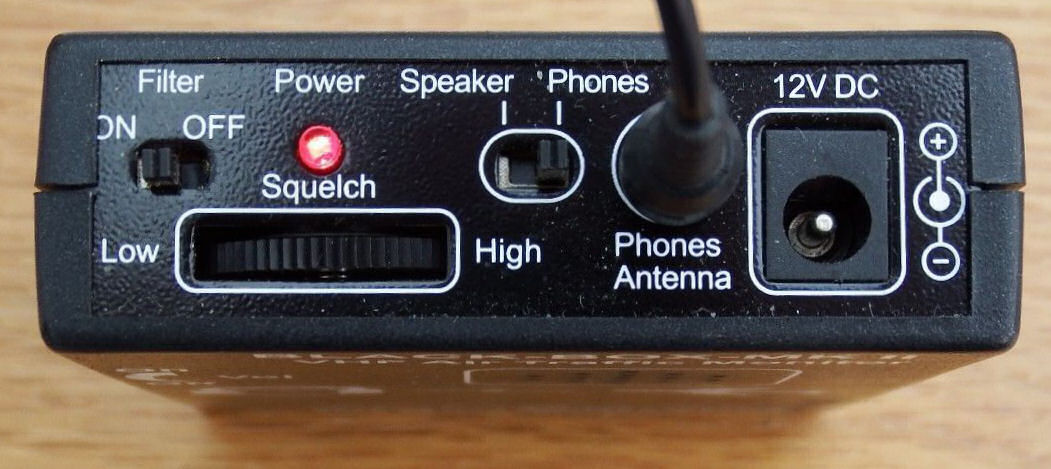

| Audio output jack: |
Built-in selectable speaker |
| Power supply requirements: |
Internal: 9 Volt Battery
External: 12V |
| Current draw: |
50 mA Maximum 20 mA typical |
| Dimensions: |
110H x 70W x 23D mm |
| Weight: |
200 gr |
| Manufactured: |
UK, 20xx-20xx |
| Other: |
See: Ramsey ABM1 |
