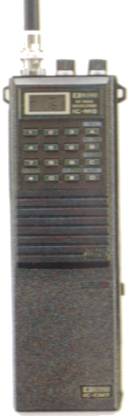

Icom IC-M5

Type: Professional Marine Transceiver
Frequency Range: RX: 156.025-157.425 and 160.625-163.275 MHz
TX: 156.025-157.425 MHz
Modes: FM
RF Power Output: Hi: 5 W
Lo: 1 W
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 6-15 VDC
Current Drain: RX: 35-140 mA
TX: Max 1.45 A
Aerial Input: 50 ohms, BNC
Dimensions (W*H*D): 65*118*35 mm (without battery)
Weight: 590 gr (incl IC-CM7 battery and antenna)
Manufactured: 19xx-19xx
Other: All international maritime channels + 10 weather channels
Related Documents: User Manual (2.9 MB)
