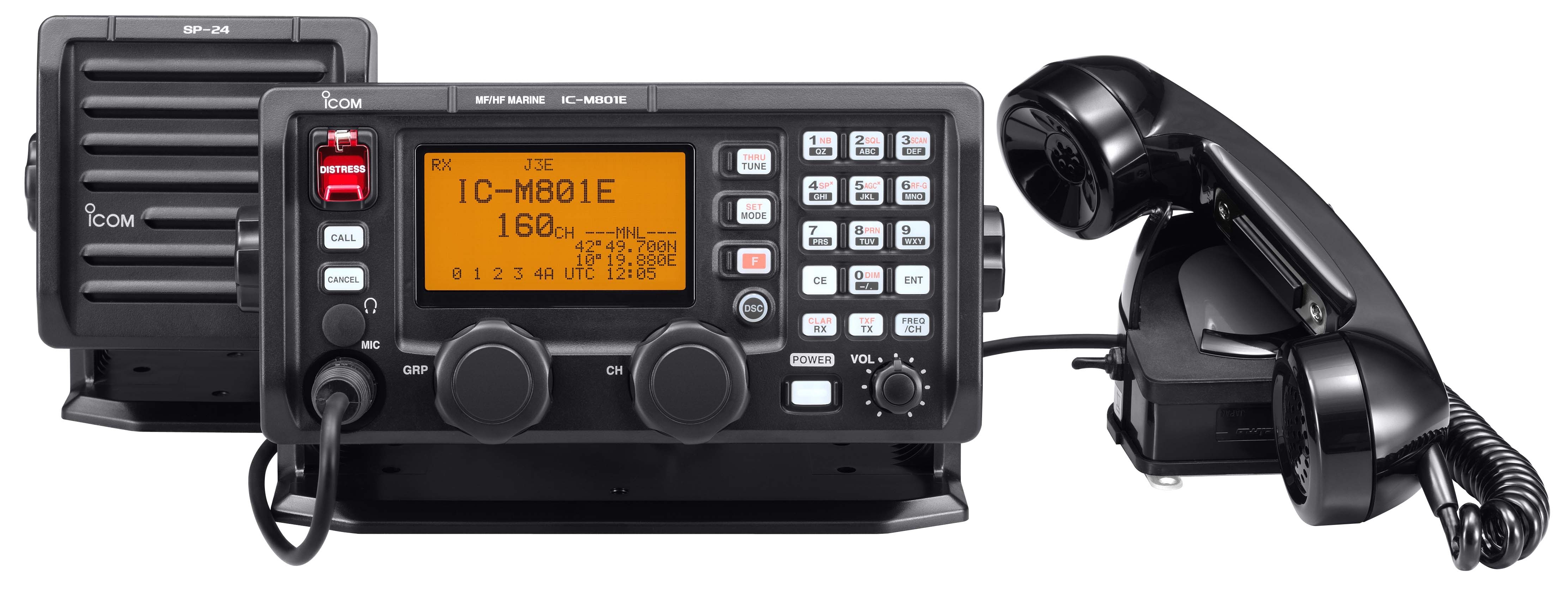

Icom IC-M801E

Type: Professional Marine Transceiver
Frequency Range: TX: 1.6-3 /4-5 / 6-7 / 8-9 / 12-14 / 16-18 / 18-20 / 22-23 / 25-27.5 MHz
RX: 0.5-30 MHz
Modes: All-mode
RF Power Output: Max: 125 W
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 12 or 24 VDC
Current Drain: Max 60 A
Aerial Input: 50 ohms
Dimensions (W*H*D): 367*95*260 mm
Weight: 8.5 Kg
Manufactured: 19xx-20xx
Other: 160 memories. Alpha-tags. Full QSK
Related Documents: User Manual (2.83 MB)
