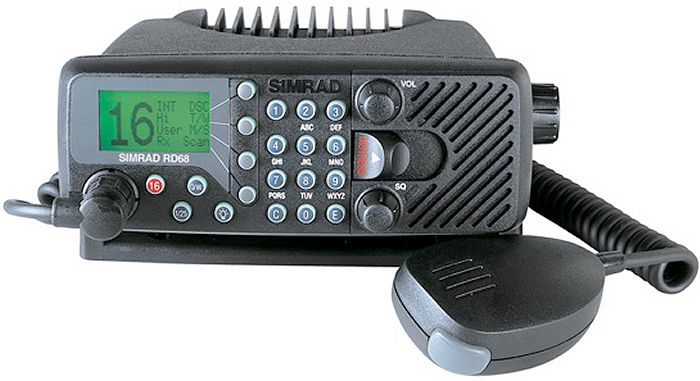

Simrad RD68

Type: Professional Marine Transceiver
Frequency Range: All intl./USA (incl WX) channels (54+10)
Modes: FM
RF Power Output: Hi: 25 W
Lo: 1 W
Sensitivity: 0.5 uV EMF / 20 dB SINAD
Selectivity: N/A
Image rejection: Better than 70 dB
Voltage: 10.8-15.6 VDC
Current Drain: RX: 180 mA
TX: Max 5.5 A
Aerial Input: 50 ohms
Dimensions (W*H*D): 185*88*168 mm
Weight: 1.4 Kg
Manufactured: 200x-200x
Other: DSC. Built-in second RX and GPS interface.
