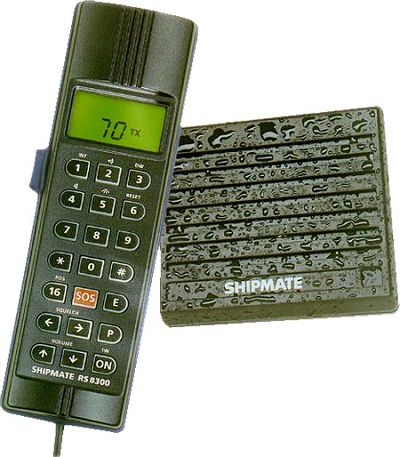

Simrad RS8300

Type: Professional Marine Transceiver
Frequency Range: All intl./USA (incl WX) channels (54+10)
Modes: FM
RF Power Output: Hi: 25 W
Lo: 1 W
Sensitivity: 0.3 uV (12 dB SINAD)
Selectivity: N/A
Image rejection: Better than 70 dB
Voltage: 10-16 VDC
Current Drain: RX: 150 mA
TX: Max 6 A
Aerial Input: 50 ohms
Dimensions (W*H*D): Main unit: 184*42*155 mm
Handset: 58*192*27 mm
Weight: Main unit: 1 Kg
Handset: 250 gr
Manufactured: 200x-200x
Other:
