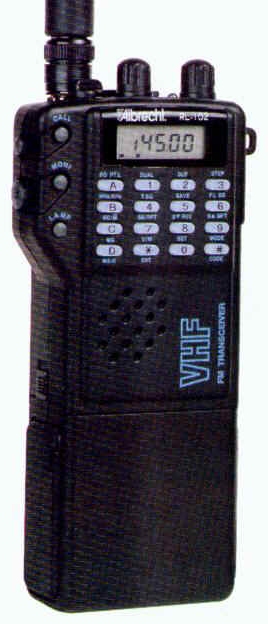

Albrecht AE-102
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
TX: 144-146 MHz
138-175 MHz |
| Mode: |
FM |
| RF Power output: |
Hi: 5 W, Mid: 2.5 W, Lo: 0.35 W |
| Memories: |
20 |
| Voltage: |
5-16 VDC |
| Current Drain: |
RX: 50-? mA
TX: Max 350-950 mA |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
55 x 84 x 31 mm (Excluding Battery) |
| Weight: |
185 gr (Excluding Battery & Antenna) |
| Manufactured: |
19xx-19xx |
| Other: |
|
| Related Documents: |
Schematic (289 KB) |
|
