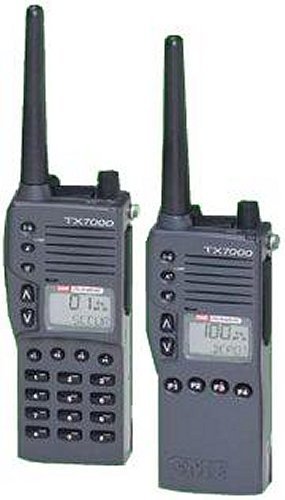

GME TX-7000
| Type: |
Private Mobile Radio |
| Frequency Range: |
450-520 MHz (12.5 / 25 KHz steps) |
| Mode: |
FM |
| RF Power output: |
Hi: 5 W
Lo: 1 W |
| Sensitivity: |
-121 dBm (12 dB SINAD unweighted) |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
9.6 VDC internal or 8-12.4 VDC external |
| Current Drain: |
RX: ? mA
TX: 0.6-1.8 A |
| Aerial Input: |
50 ohms, TNC |
| Dimensions (W*H*D): |
60*145*35 mm |
| Weight: |
450 gr |
| Manufactured: |
Australia, xxxx-xxxx (Discontinued) |
| Other: |
CTCSS & CCIR Selcall. Scanning. DTMF. Alpha-tags. |
